Prolinemax Heavy Duty 5C Angle End Mill Grinding Fixture Sharpener

Description

Product Overview

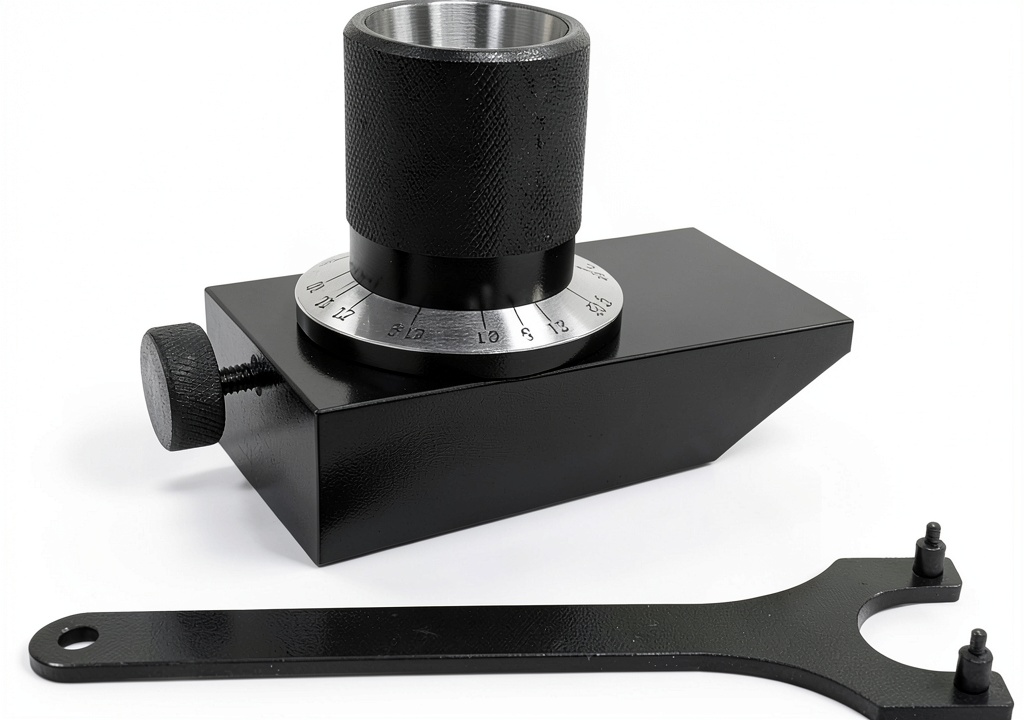

The Prolinemax Heavy Duty 5C Angle End Mill Grinding Fixture Sharpener is a purpose‑built accessory designed to meet the rigorous demands of modern CNC machining and precision manufacturing. Constructed from high‑strength steel and finished with a black oxide coating, the fixture provides exceptional resistance to wear, corrosion, and the high temperatures generated during grinding operations. The integrated 5C collet system ensures that each end mill is held with true concentricity, eliminating run‑out and delivering repeatable, high‑quality results.

Engineered to accommodate shank sizes ranging from 1/16 inch up to 1‑1/8 inch, the fixture can grind a wide variety of end mills, including 2‑, 3‑, 4‑, 6‑, 8‑, and 12‑fluted tools as well as shell mills when used with straight‑shank arbors. The base is magnet‑ground to provide a guaranteed contact surface, while the built‑in clearance and relief angles reduce the risk of chip interference and improve overall grinding efficiency. The black oxide finishing not only enhances visual appeal but also adds a protective layer that extends the service life of the fixture.

Every component of the Prolinemax fixture has been carefully machined to tight tolerances, ensuring that the grinding process is both stable and precise. The solid base is designed to be firmly anchored to a workbench or machine table, providing a stable platform that minimizes vibration and maximizes tool life. The fixture’s modular design allows for quick tool changes, reducing downtime and increasing productivity in high‑volume environments.

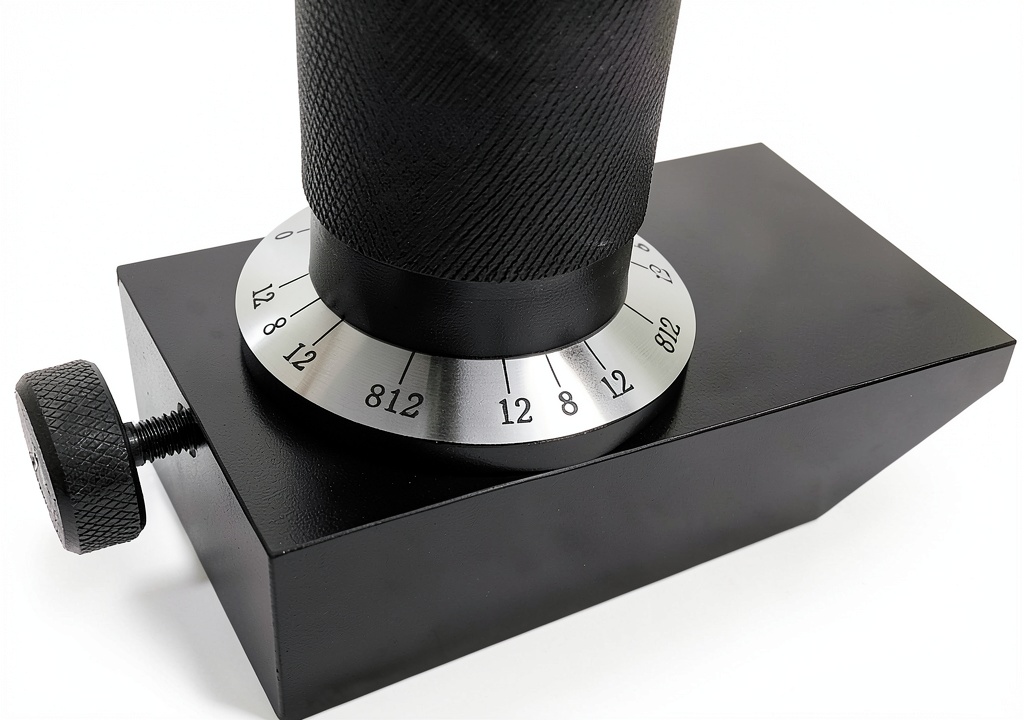

In addition to its robust construction, the fixture incorporates user‑friendly features such as easy‑to‑read markings for shank size and flutes, as well as a simple locking mechanism that secures the collet without the need for additional tools. This thoughtful design reduces the learning curve for new operators while maintaining the high performance expected by seasoned professionals.

Overall, the Prolinemax Heavy Duty 5C Angle End Mill Grinding Fixture Sharpener combines durability, precision, and versatility, making it an essential addition to any cutting‑tool maintenance program.

Usage

Designed for use in CNC machining centers, tool rooms, and small‑shop environments, this fixture excels in any setting where end‑mill sharpening is required. Whether you are grinding a single high‑value tool or processing a batch of standard cutters, the fixture’s 5C collet system provides consistent clamping force, ensuring that each tool is positioned accurately for optimal material removal.

When grinding, the fixture should be mounted on a stable surface such as a granite table or a heavy‑duty workbench. The magnet‑ground base creates a secure contact point that prevents movement during operation, which is especially important when working with high‑speed grinders. Operators can quickly load and unload end mills using the collet, allowing for rapid turnover and minimal interruption to the production schedule.

The built‑in clearance and relief angles are particularly beneficial when grinding tools with multiple flutes. These angles guide chips away from the workpiece and reduce the chance of chip re‑engagement, which can cause surface imperfections or tool damage. By maintaining a clean grinding environment, the fixture helps extend the life of both the grinding wheel and the end mill.

For best results, it is recommended to use a fine‑grit grinding wheel appropriate for the material of the end mill (e.g., carbide or high‑speed steel). The black oxide finish on the fixture’s base also helps dissipate heat, reducing thermal distortion and preserving the dimensional accuracy of the sharpened tool.

Why Choose Us

Prolinemax is a recognized brand in the industrial tooling sector, known for delivering products that meet stringent quality standards. Our Heavy Duty 5C Angle End Mill Grinding Fixture Sharpener is manufactured in facilities that adhere to ISO 9001 certification, ensuring that each unit undergoes rigorous inspection before leaving the factory.

We stand behind the durability of our fixture with a comprehensive warranty that covers material defects and workmanship for a full year. Our dedicated technical support team is available to assist with installation, troubleshooting, and optimization tips, providing you with the confidence to integrate the fixture into your workflow without hesitation.

Unlike many generic grinding accessories, our fixture incorporates a magnet‑ground base and a black oxide finish, both of which are engineered to resist wear and maintain performance over thousands of grinding cycles. This attention to detail translates into lower total cost of ownership for our customers, as the fixture requires fewer replacements and less frequent maintenance.

Furthermore, the design of the Prolinemax fixture emphasizes ease of use. The intuitive collet locking system, clear size markings, and modular construction enable operators of all skill levels to achieve professional‑grade sharpening results quickly and safely.

Key Features

• 5C collet system guarantees true concentricity for flawless tool balance.
• Magnet‑ground solid base provides rock‑steady stability during high‑speed grinding.
• Black oxide finish resists corrosion and extends fixture lifespan in harsh shop environments.
• Accommodates 1/16‑ to 1‑1/8‑inch shank end mills, supporting 2‑12 fluted tools and shell mills.
• Dedicated after‑sales support and one‑year warranty ensure reliable long‑term performance.

FAQ

What shank sizes can the fixture accommodate?

The fixture is designed to handle shank diameters from 1/16 inch up to 1‑1/8 inch, covering the most common sizes used in CNC machining and manual milling operations.

Can I use this fixture with both carbide and high‑speed steel end mills?

Yes. The 5C collet system is compatible with both carbide and high‑speed steel tools, provided the appropriate grinding wheel is selected for the material being sharpened.

How do I ensure the best grinding results with this fixture?

Mount the fixture on a stable, vibration‑free surface, use a fine‑grit grinding wheel suited to the tool material, and follow the recommended clearance angles to guide chips away from the workpiece.

Is the black oxide coating purely cosmetic?

No. The black oxide coating provides a protective barrier against rust and wear, helping the fixture maintain its precision and appearance even after extensive use.

What warranty does Prolinemax offer for this product?

Prolinemax provides a one‑year limited warranty covering any material or workmanship defects, backed by responsive technical support to assist with any issues.
